@Suites for precise cutting in many phases of work. Tilting arbor cross cut saw with slide table "Petty Work".
@PW-300AL@Mobile and tilting arbor
@Features Portable and the most suitable for multi-purpose operations. With a tilting arbor (0to 45), you can cut wood and other materials that require high precision surface. Single phase 0.75kw, three phase 0.75kw, 1.5kw and 2.2kw motors availble.
@PW-300WS@Mobile and tilting arbor @Features Precision and beautiful cutting surface thanks to both-slide-table. You can stand at both right and left sides. Easier model in Petty Work line-up.

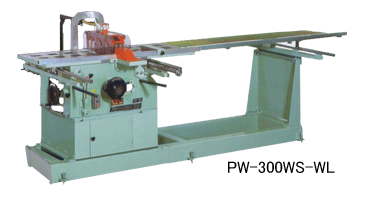

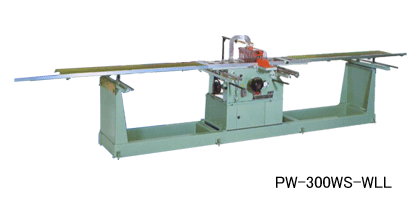

@Ideal for long materials
@Specifications
Models
PW-AL
PW-WS
PW-WS-L
PW-WS-LL
Cutting length
with circular saw 305mm
Cutting thickness
with circular saw 305mm
Cutting thickness
with circular saw 305mm
550mm with 55mm thickness at 90
3mm to 55mm
at 90
3mm to 40mm
at 45
55mm thickness x 400mm at 90
3mm to 55mm thickness at 90
3mm to 35mm thickness at 45
Fixed table dimension
330mm(W) x 495mm(L)
-
Sliding table dimension
450mm(W) x 450mm(L)
1200mm(W) x 400mm(L)
2700mm(W) x 400mm(L)
4200mm(W) x 400mm(L)
Diameter of saw
203mm to 305mm
Diameter of cutter
Thickness of cutter
200mm for designated scoring saw 3mm to 21mm
Groove depth of cutter
up to 17mm
with diameter 200mm
up to 7mm
with diameter 200mm
Diameter of dust collector
Spindle speed
Motor
75mm x 1 50Hz-2810rpm@60HZ-3380rpm PW-300 1phase x 0.75kw PW-301 3phase x 0.75kw PW-302 3phase x 1.5kw PW-303 3phase x 2.2kw
Table height
810mm
Installation area
1200mm(W) x 1600mm(L)
1310mm(W) x 1500mm(L)
2700mm(W) x 1500mm(L)
4200mm(W) x 1500mm(L)
Weight
115kg
130kg
180kg
225kg
Wide range and heavy-duty model
with
full aluminum slide table
